Vertimag XXL is a series of automated vertical storage systems within the Ferretto Vertimag range. A Vertical Lift Module stores trays vertically inside an enclosed structure and automatically delivers the requested tray to the operator at an ergonomic access point.
The system is designed to optimise warehouse space, improve inventory control and make picking operations faster, safer and more organised.
| FEATURE | VERTIMAG XXL SERIES |
| Tray width | 4.850 mm |
| Machine footprint width | 5.352 mm |
| Available models | 65XXL – 84XXL – 103XXL |
| Tray depths | 650 mm – 840 mm – 1.030 mm |
| Storage capacity | Up to 14% more than Vertimag XL |
The model name identifies the tray depth: 65XXL has a 650 mm-deep tray, 84XXL an 840 mm-deep tray and 103XXL a 1,030 mm-deep tray. This makes it possible to select the most suitable model according to the dimensions, weight and quantity of the stored materials.
DISCOVER THE FULL RANGE OF VERTIMAG VERTICAL STORAGE SYSTEMS
Many companies need more storage capacity but do not necessarily need, or have room for, a second automated vertical storage system. The challenge is therefore to increase the usable storage surface while keeping the installation compact and easy to integrate into existing processes.
Vertimag XXL was developed for companies that want to:

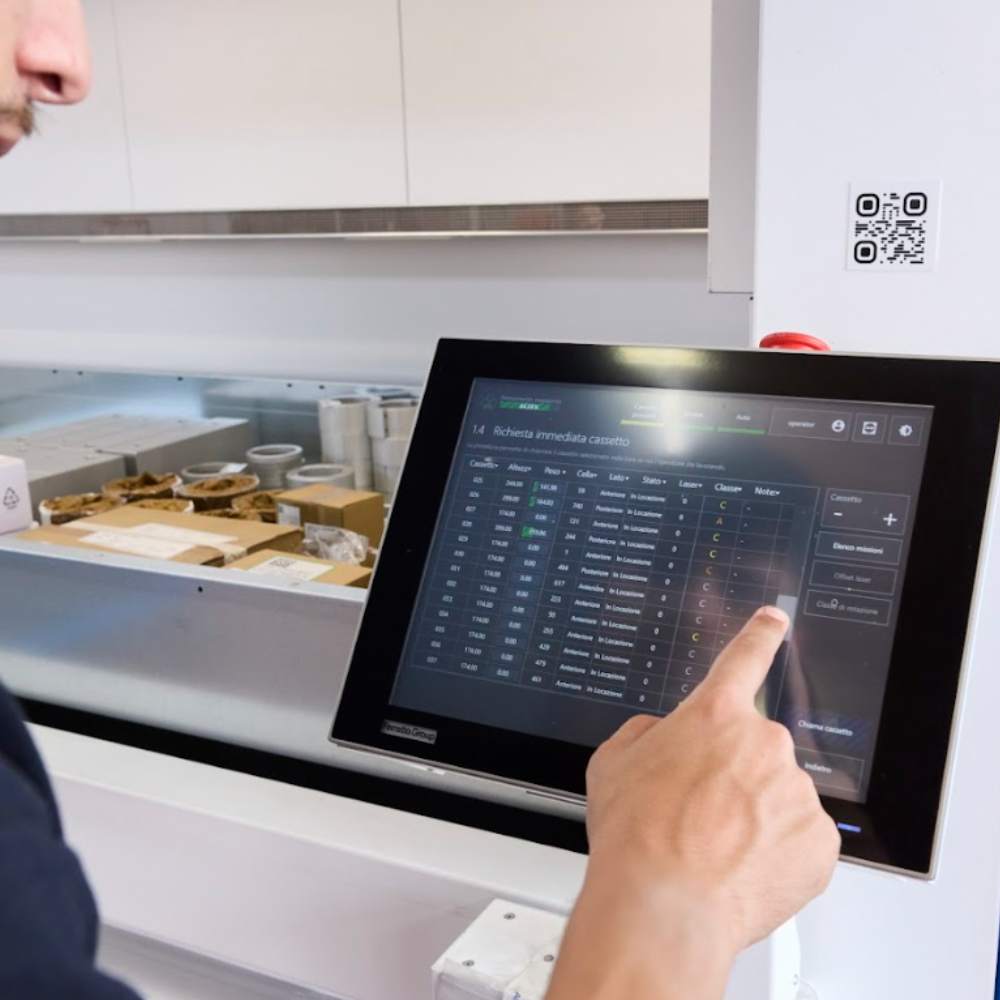

Vertimag XXL can be integrated with Ejlog, Ferretto’s Warehouse Management System, and with leading ERP platforms. The integration supports real-time inventory visibility, movement traceability and centralised management of automated and conventional storage areas.
This makes Vertimag XXL suitable not only as a stand-alone storage solution, but also as part of a broader intralogistics and warehouse digitalisation project.
Vertimag XXL is designed and manufactured at Ferretto’s facility in Vicenza, Italy. The series builds on more than 70 years of experience in storage and intralogistics solutions.
Ferretto supports customers throughout the entire project life cycle, from analysis and system design to installation, training, technical assistance, maintenance and spare parts.
Vertimag XXL is particularly suitable for companies that need high storage capacity, a larger tray surface and a compact automated solution. It can support applications across manufacturing, distribution, maintenance, spare parts management and industrial warehousing.
The correct model should be selected according to the size, weight, quantity and turnover rate of the stored items, as well as the available building dimensions and required picking performance.
Vertimag XXL is a series comprising three Vertical Lift Module models: 65XXL, 84XXL and 103XXL.
Vertimag XXL introduces a 4,850 mm-wide tray and can provide up to 14% more storage capacity than Vertimag XL, while retaining the same Vertimag operating logic.
The series includes 65XXL, 84XXL and 103XXL, with tray depths of 650 mm, 840 mm and 1,030 mm respectively.
Yes. Vertimag XXL can be integrated with Ejlog, Ferretto’s Warehouse Management System, and with leading ERP systems.
In some projects, its larger tray surface and higher capacity may reduce the need for a second machine. The result depends on inventory volumes, item dimensions, load requirements and picking flows.
Yes. Ferretto supports companies and system designers in selecting the model and configuration that best match the application.
Vertimag XXL expands the Ferretto range with a new size for companies that need more capacity without changing the way they work.
Contact Ferretto to assess the most suitable model and configuration for your warehouse, materials and operational requirements.
